DEMONSTRATORS / PROTOTYPES
Emelody engineers and designers enable our clients to produce commercially scalable solutions with technology ready systems. We work with our clients to not only in conceptualization but providing complete, turn-key systems that outline feasibility, reliability, and scalability.

CLOSE
mACHINING
CLOSE

MACHINING
Emelody implements a number of machining processes to produce prototype parts, as well as innovate tool/jig setup and CAM optimization. In-house we contain the ability for milling 5 axis simultaneous with 5 micron repeatability, and advanced turning with live tooling operations. If you require advanced finishing for your product, Emelody contains a number of recommended solutions based on application.

CLOSE
3D Printing
CLOSE

3D PRINTING
Emelody Worldwide provides top-quality 3D printing direct to your next project. Whether it is a small scale consumer design or large scale aerospace flight hardware part, Emelody stands ready to engage with you to maximize your additive requirements tailored specifically to your application.

CLOSE
Research
CLOSE

RESEARCH
Emelody research integrates engineering, science, and humanistics to address the problems of tomorrow. Turning advanced ideas into precision technologies with remarkable reliability, our core focus is improving the quality of research within government, corporate, and higher educational institutions. Emelody research offers an assortment of contractual options tailored for our clients in industry. Through our collaborative partnerships, we effectively become a company’s external research and design (ERAD) group. Our participation contractually can be structured as a prime, sub-prime, team extension, or Small Business Innovative Research (SBIR) consultant.

CLOSE

Renewable Energy

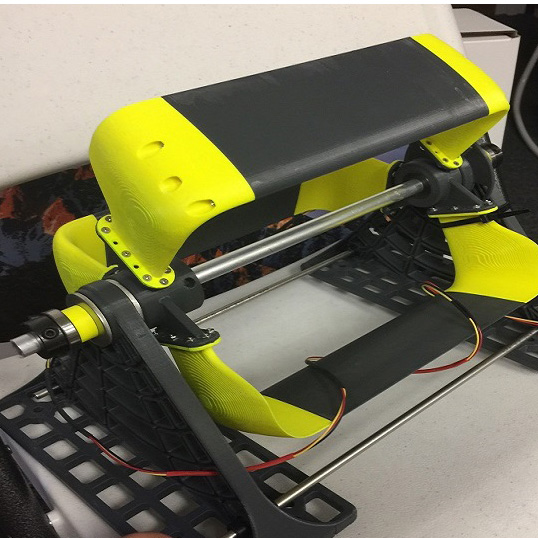

Wind Turbine Concept (MDS): Capturing multi-directional flow from expelled vent outlets, Emelody designed a VAWT/HAWT hybrid system to capture upward, and horizontal wind directions based on the daily time setting of the vent outlet.

close
CLOSE

Medical

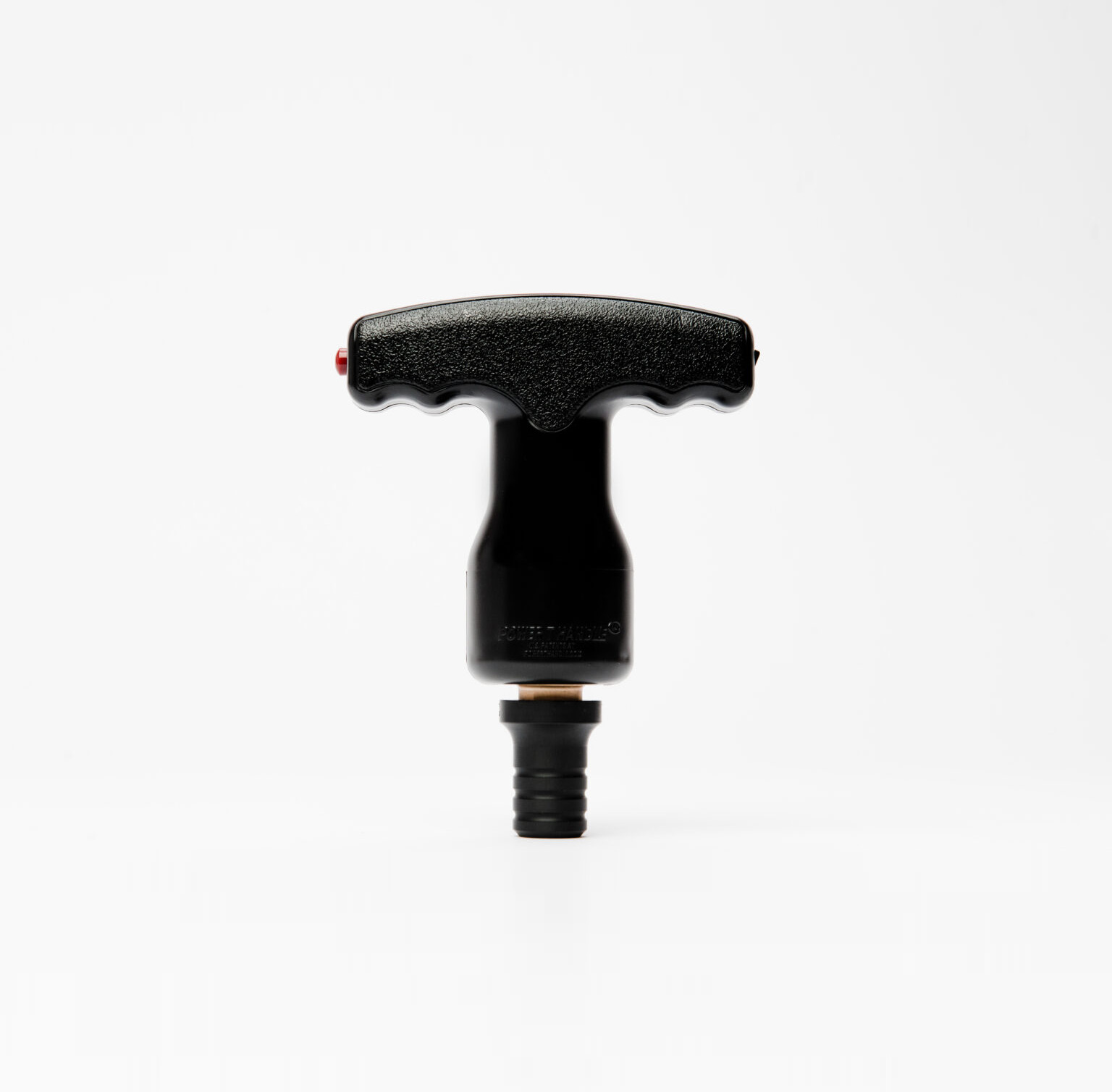

Power T- Handle (PTLLC): A pedicel insertion driver with both manual and powered settings for precision insertion of spinal screws. Emelody provided mechanical engineering, power plant integration, and ergonomic test prints.

close
CLOSE

Dental

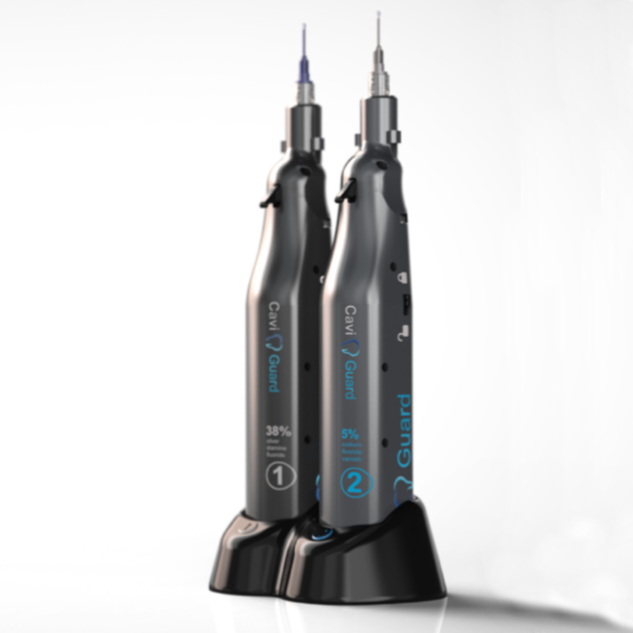

Silver Diamine Fluoride Dispenser (NODK): SDF is used to fill cavities and is very costly if used in unregulated amount. Emelody provided the mechanical engineering design to dispense a 15-microliter drop via mechanical action for up to 10,000 clicks of dispense.

close
CLOSE

Aerospace

Jig Design: (Gulfstream): Tooling is commonly used in aerospace to expedite the design process. Emelody provided mechanical design of a seat-jig prototype developed through additive manufacturing.

close
CLOSE

Consumer Design

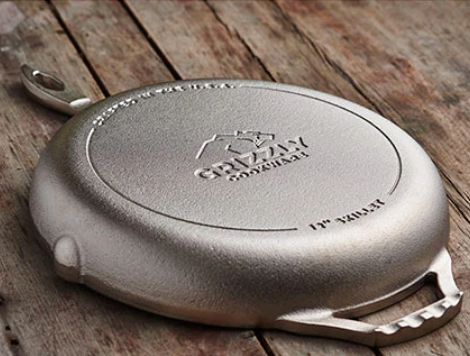

(Grizzly Cast Iron): Cast Iron skillet cooking is a famed method of great flavor. Emelody provided design and mechanical engineering to the multi-line product development of the innovation of nickel-plated cast iron.

close
CLOSE

Aerospace

  • Air Frame Design
  • Propolsion Analysis
  • Retrofit Engineering
  • Enhancements & Replacements
  • Control Systems
  • UAV Development
close
CLOSE

Automotive

  • Surface Modeling Development
  • Drivetrain Design
  • Battery Technology
  • Power Distribution
  • Vehicle Development
close
CLOSE

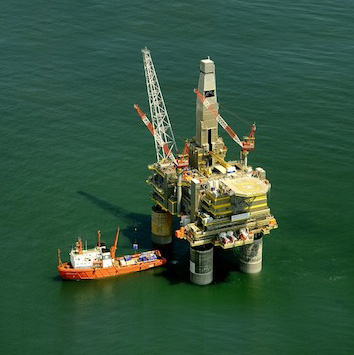

Energy

  • Multi-Phase Flow Analysis
  • Offshore Electronics Technology
  • Flow Measurement Design
  • Component Testing
  • Instrumentation & Control Integration
close
CLOSE

Robotics

  • R.O.S. Development
  • Robotics Engineering
  • UAS Design
  • Path Planning
  • Lidar/Point Navigation
close
CLOSE

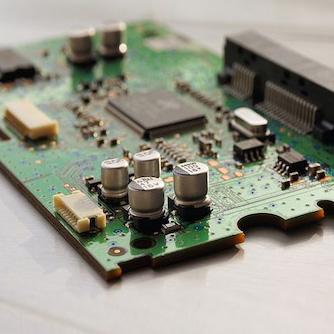

Electronics

  • Micro-Controller Design
  • Life Cycle Testing
  • Biometric Systems
  • Intelligent IOT Systems
  • DSP
  • FPGA Integration & Design
close
CLOSE

Firmware

  • Embedded Firmware Design
  • Machine Learning
  • Reverse Engineering
  • Systems Integration
close
CLOSE

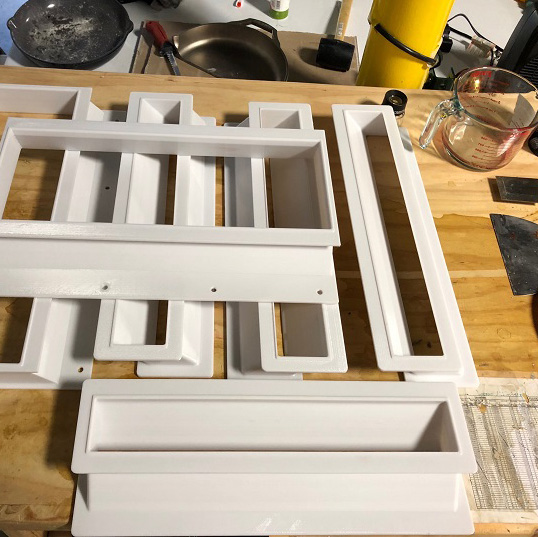

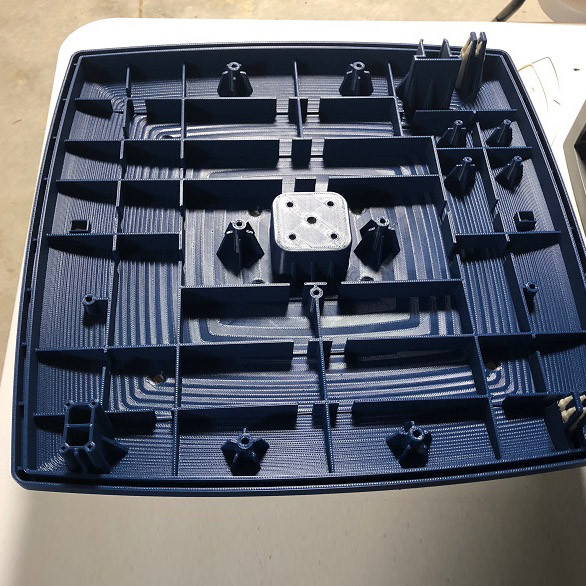

FDM

FDM is selected when the goal is to use 3D printed parts as a terminal solution. FDM parts are directly used in aerospace, automotive, industrial, and consumer applications when part volume may not warrant tooling. FDM can be provided at resolutions as fine as 0.005" in over 13 thermoplastics. Typical plastic choices are ABS, PC-ABS, PC, Nylon 12, and Ultem 9085. Emelody engineers can recommend a thermoplastic that best fits your application. With the largest system build tray of 2ft x 3ft x 3ft, no project is too large.

close
CLOSE

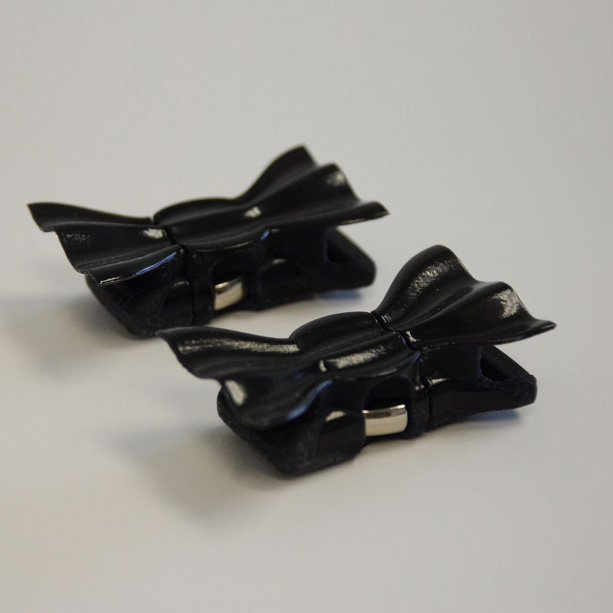

Polyjet

PolyJet is a powerful 3D printing technology that allows for some of the highest 3D printing resolutions possible. With precisions as fine as 16 microns, the level of detail is extraordinary. PolyJet materials differ from their FDM counter parts in that they utilize UV cured liquid photopolymers. The parts have incredible smoothness and make for an excellent finish for aesthetic models. In addition, due to the precision they are able to print extremely small parts with great resolution. Top applications include medical, dental, and micro-actuation.

close
CLOSE

SLA

SLA materials range widely in mechanical properties and offer a wide variety of applications. Applications include snap-fit assemblies, automotive styling components, and master patterns. High-temperature materials and transparent materials are also available. Biocompatible materials are available for medical applications such as surgical tools, dental appliances, and hearing aids. Other materials are specifically formulated for patterns, offering low ash creation and high precision while also being expendable.

close
CLOSE

CNC(Milling/Turning)

Utilizing Okuma technology, our in house system of advanced manufacturing allows us to create repeatable prototype solutions to find statistical significance in case studies and analyze modes of failure to improve product design. For any given project, Emelody will produce up to 25 demonstrator systems to validate a design. In addition our 3D printing solutions compliment this expertise with quick turn PC and ULTEM soft jaws.

close
CLOSE

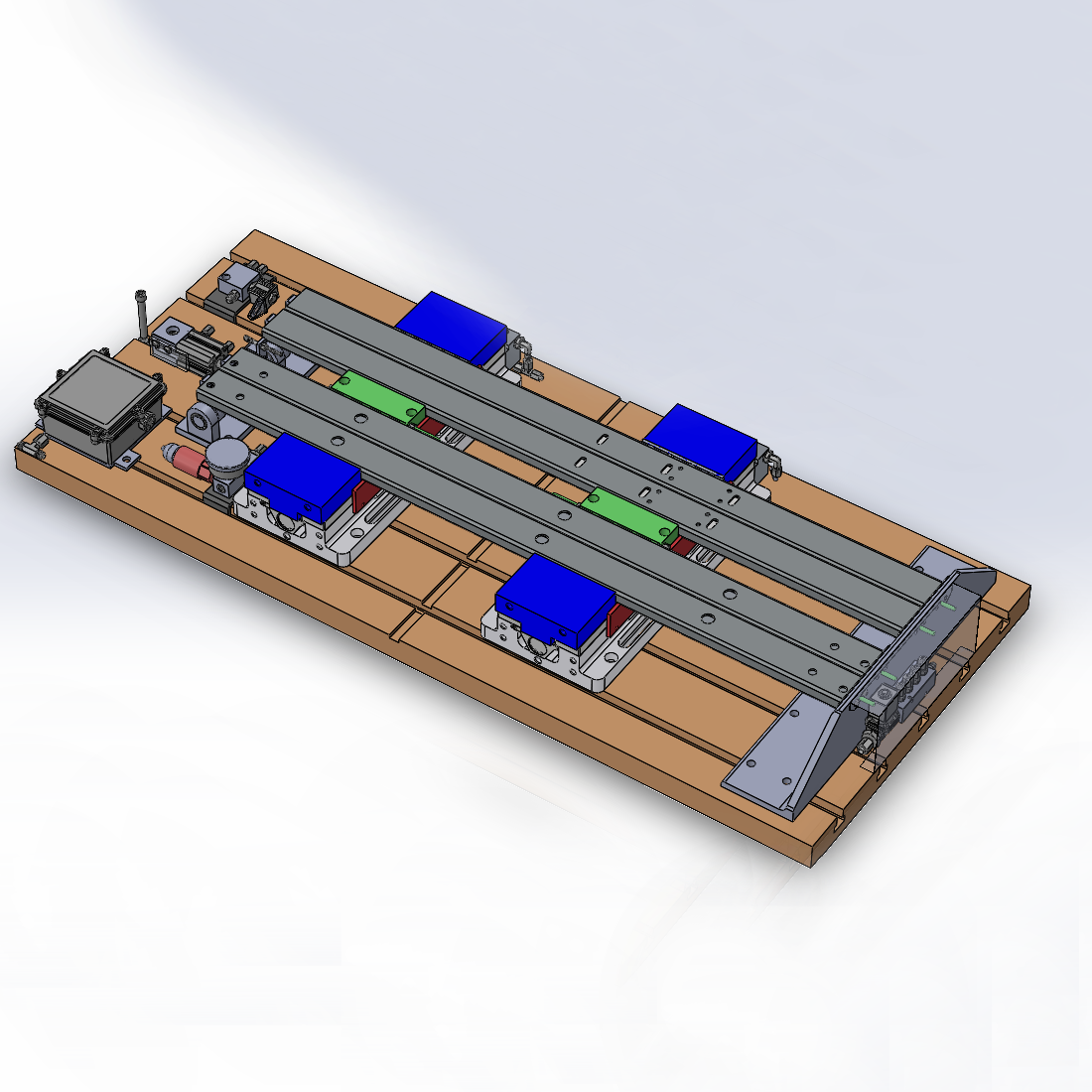

CAM & Jig Design

New machining projects require extensive thought and planning in order to minimize tolerance errors and poor part quality finish. Emelody provides set up and CAM consulting in order to design the best fixture systems that maximize rigidity and minimize set up time. In house we verify on our machinery that the methodology will work flawless providing the confidence to let operators maximize throughput.

close
CLOSE

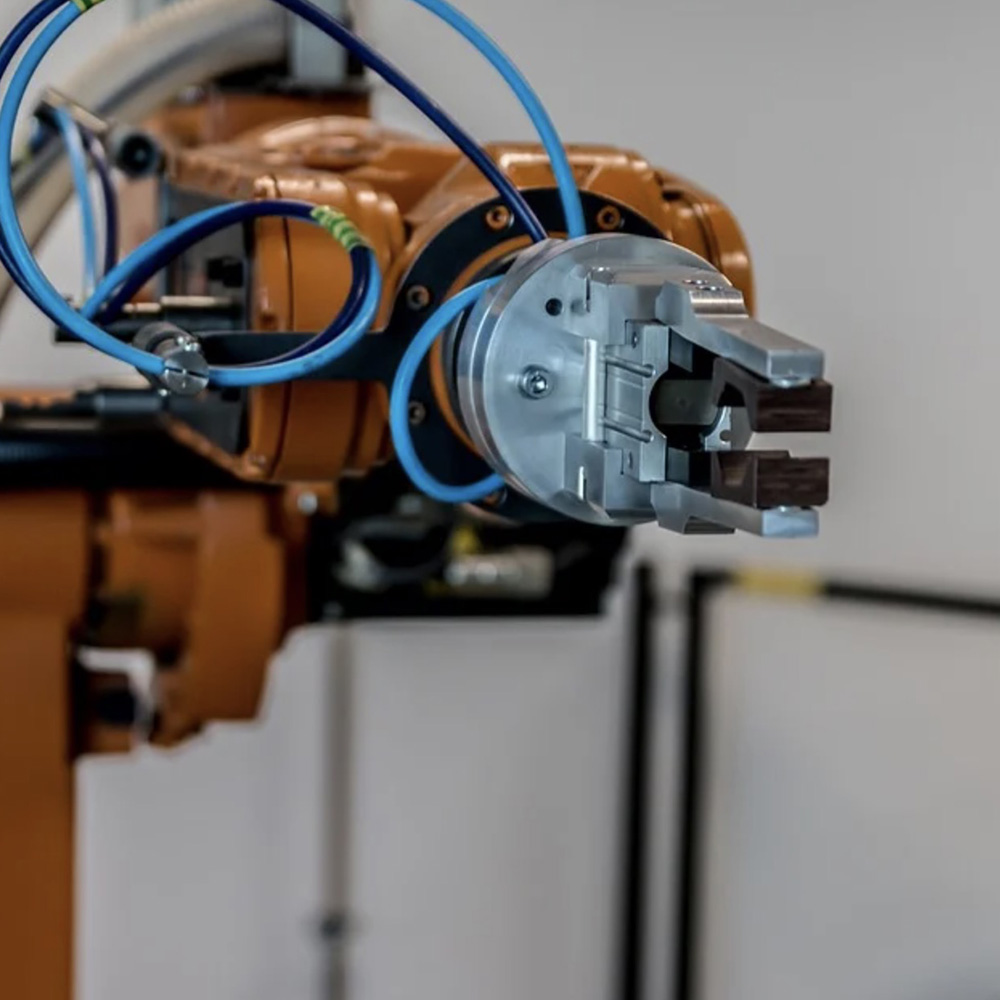

Automation Engineering

With globalization come many benefits, but additionally many drawbacks. These drawbacks can be noticed when unforeseen events occur such as changes in political states, world events, and sudden market demand changes. In order to create a competitive process of manufacturing, Emelody provides process and manufacturing engineering solutions through automation solutions. In order to be a world leader in manufacturing, the next generation of manufacturing will require intelligent automated solutions through the advancement of robotics, and AI. Emelody engages with companies to determine their manufacturing goals and not only layout the process, but additionally prototype the process using in house and partnership equipment.
